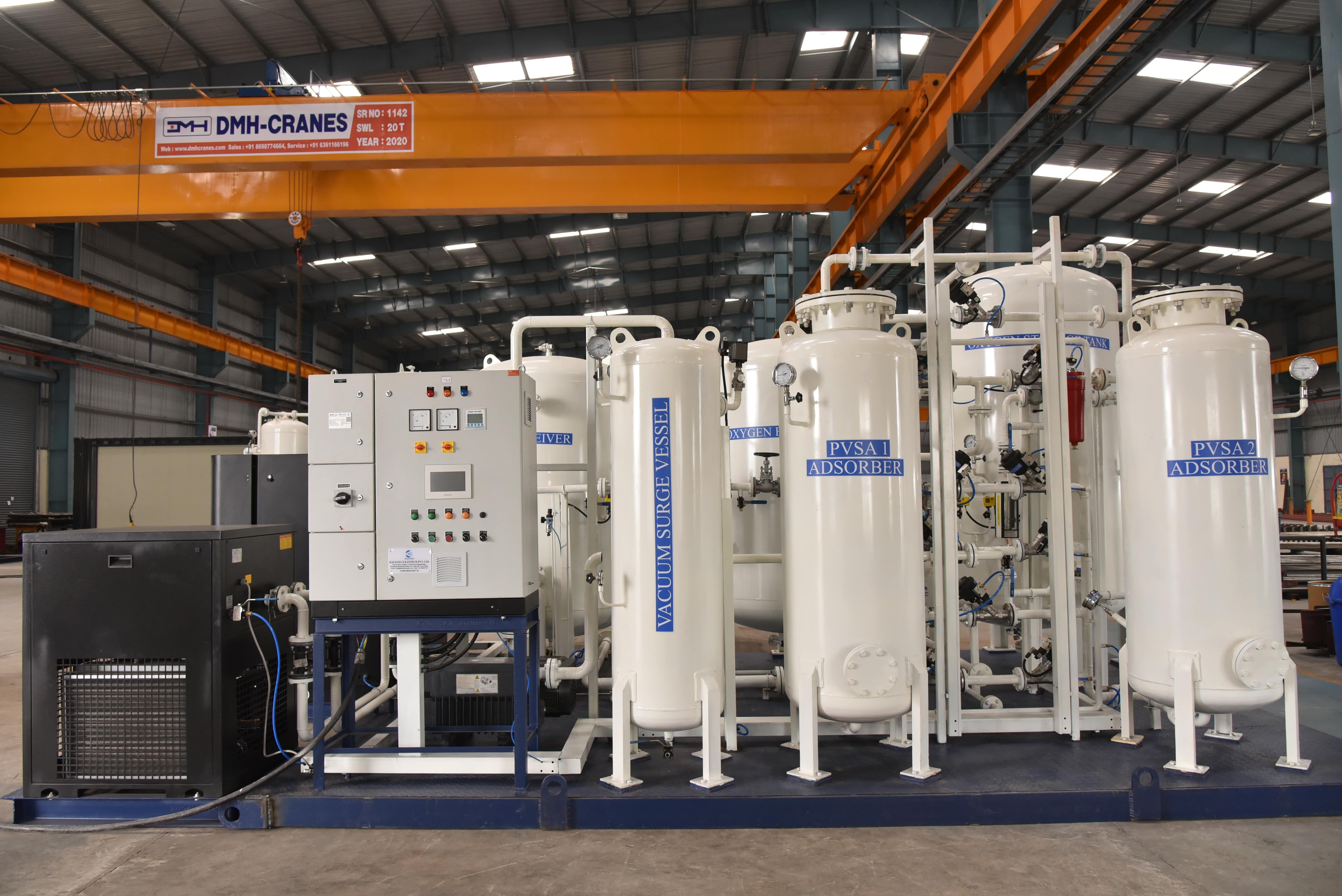

PVSA (Pressure Vacuum Swing Adsorption ) Oxygen Generators are based on well proven technology using Zeolite Molecular Sieves (ZMS) & Vacuum system for regeneration. Using this technology, we produce oxygen plants that are highly economical, require low maintenance and produce the desired results in a hassle-free manner. These generators adsorb nitrogen with the help of two adsorption vessels that are filled with most efficient zeolite molecular sieves responsible for nitrogen adsorption.

In the Oxygen Generation Process, the air is taken from an air compressor and oxygen is separated from other gases, including nitrogen with the help of zeolite molecular sieves. The process involves two towers filled with zeolite molecular sieves which adsorb nitrogen and subsequently discharge waste. When nitrogen saturates from one tower, this process changes over to the other tower, thus helping in the process of continuous oxygen generation. The produced oxygen has a purity of 96%.



Technical Specifications


Capacity 3 - 100 Nm3/ hr
Purity 93 ± 3%
Operating Pressure 1.8 - 5.5 Bar g
Operating Temperature 42°C
Outlet 45°C max
Cycle Time Variable (45 + 45) to (90 + 90) Seconds
Type of Desiccant Zeolite Molecular Sieve & Activated Alumina
Main Air Flow Bottom to Top
Regeneration Gas Top to Bottom
Outlet Pressure Around 2.0 to 5.0 kg/Cm2g


Features

  • High Reliability
  • Low gas speeds through the molecular sieve beds, first-class components, stainless steel valve bodies and instrument air tubing, heavy-duty industrial PLC Manufactured to work. Always energy cost is your major expense, not depreciation. Fast pay-back assured.

  • Easy Integration
  • Easy installation and integration with existing equipment: All system tie-in points are on one side.

  • Safe
  • Heavy-duty adsorption vessels, designed and certified for an unlimited number of cyclic loads.

  • Customization
  • An extended list of options allows you to define your specific Kalyani Cleantech Twin-Tower PVSA Oxygen Generator adjusted to your individual need.


Plant Equipment

  • Air Compressor
  • Air Cooling and Dryer Unit
  • PSA Oxygen Generator Towers
  • Oxygen Tank
  • PLC Panel With HMI Control
